FC_IO_PWM Class Reference

Pulse Width Modulation output. More...

Inheritance diagram for FC_IO_PWM:

Public Member Functions
	FC_IO_PWM (int width, int pol_on=1)
void	Setup (U16 period, TimeUnits tu=TU_clk)
void	SetOnOff (U16 on, U16 off, U32 channel)

Detailed Description

Pulse Width Modulation output.

Adds to interface:
if width = 1 then
<name> : out std_logic
if width > 1 then
<name> : out std_logic_vector(width-1 downto 0)
where <name> is c++ object name.
Any number of instances are allowed.

// This example show how to use the FC_IO_PWM and FC_System_Timer classes.
// Two PWM objects are created. One with 4 outputs and one with one output.
// Every 1000 us one of the PWMs dutycycle is updated.

#include "fc_io.h"
#include "fc_system.h"

int main()
{
//% hw_begin
    FC_IO_Clk clk(100);
    FC_IO_PWM pwm_1(4);
    FC_IO_PWM pwm_2(1);
    FC_System_Timer timer;
//% hw_end
    int on = 100;

    pwm_1.Setup(1000, TU_us);
    pwm_1.SetOnOff(0,on,0);
    pwm_1.SetOnOff(0,400,1);
    pwm_1.SetOnOff(400,0,2);
    pwm_1.SetOnOff(300,450,3);

    pwm_2.Setup(200, TU_us);
    pwm_2.SetOnOff(0,50,0);

    timer.Start(1000,TU_us);
    for (;;)
    {
        timer.WaitTimer();

        on += 100;
        if( on >= 1000 )
            on = 100;

        pwm_1.SetOnOff(0,on,0);
    }
}

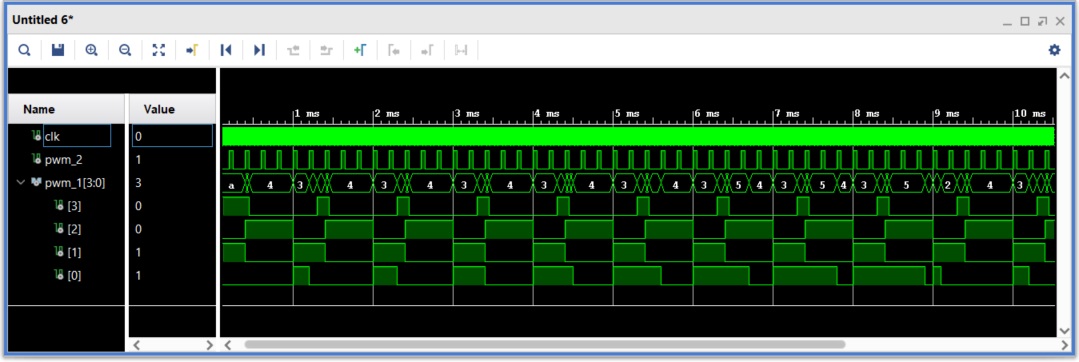

This example will give the following result:
